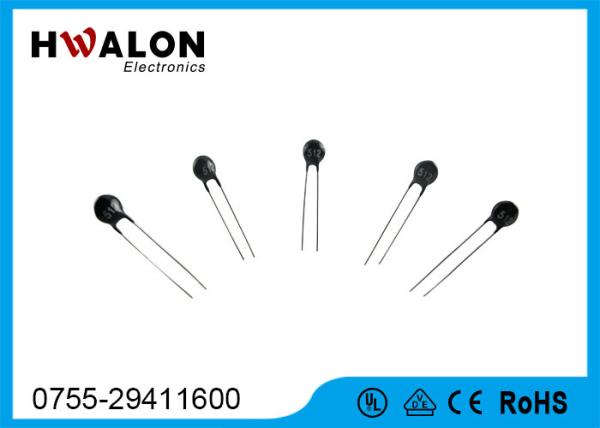

NTC Temperature Sensor Thermistor R value 5K 10K 20K 50K 100K B value 3435 3730 3950
Features:
· Radial resin coated
· Small dimension
· Powerful in limiting inrush current
· Fast response
· Large material constant (B value)
· Low residue resistance
· Long life, high reliability
· Complete part, wide operation range
· Operating temperature -55°C~200°C
Application:
1. Electronic ballast,display
2. Conversion power supply, switch power
3. Kinds of electric heater, electronic energy-saving lamps,
4. Filament protection of all kinds of RT, bulb and other lighting lamps
Parameters:
| B value | from 3100K to 4300K |
| Tolerance of B value | 1%, ± 2%, ± 3%, ± 5% |
| Resitance | from 1Kohm to 330Kohm |
| Tolerance of Resitance: | ± 1%, ± 2%, ± 3%, ± 5%, ± 10% |
| head size: | customzied |
| Lead material: | customzied |
Applications:
1. Heating, ventilation and air conditioning
2. Temperature regulation and measurement
3. Electronic thermometers
4. Liquid level sensing
5. Automotive electronics
6. Medical equipment and apparatus
7. Battery packs and portable electronics
How to Order:
In order to help you to get the exact model, please offer the following necessary info.:
1. application of the NTC thermistor:_________
2.working environment of NTC thermistor:________
3. range of operation temperature:___°c to ___°c
*4. dimension and the drawing of the NTC
*5. resistance at 25 °c: _____ ohm
*6. tolerance of resistance: _____ %
*7. B value: _____ K
*8. tolerance of B value: _____%
*9. head size: _____mm
*10. wire length: _____mm
* Fill " * " items necessarily.
